ARES 6x-3P Night vision Rifle scope - RTP Armor

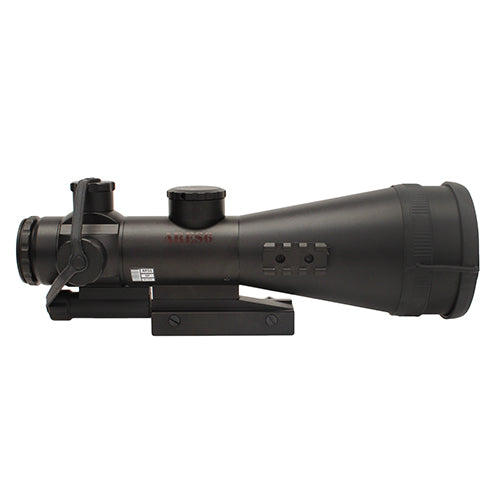

ARES 6x-3P Night vision Rifle scope

Vendor: ATN Corporation


Regular price $5,205.60

The ATN ARES series is the latest offering in the ATN night vision weapon sight line.

The ARES series provide the user with a rugged easy to use and accurate night vision weapon sight. Fast infra-red sensitive optics coupled with quality image tubes provide high resolution clear images for outstanding target acquisition and aiming capabilities. Rugged ease of use and accurate are just a few of the features these scopes have to offer. Available with a wide array of Image Intensifier Tube configurations to choose from they set out to satisfy a variety of budgets requirements and specifications.

Designed for optimal performance for both professional and sporting uses the ARES is the next generation of ATN scopes.


- Superior quality Multi-coated all-glass optics
- Precision windage and elevation adjustments
- Red on green reticle system with 1/6 MOA adjustment
- Automatic brightness control (ABC) for tube protection
- One-knob operation
- Illuminated center red reticle for optimal contrast against a dark or light target
- Mounts to standard weaver rails
- Use 1 AA type battery


- Total Darkness IR System: Yes
- Magnification: 6x
- Proshield Lens Coating: Yes
- Field of View: 5°
- Range of Focus: 10m to Infinity
- Diopter Adjustment: -4 to +6
- Controls: Yes
- Remote Control: No
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Infrared Illuminator Detachable: IR850
- IR Indicator: Yes
- Low Battery Indicator: Yes (In Field of View)
- Power Supply: 1 x 1.5 V AA Battery
- Battery Life: 30 Hours
- Reticle System: Red on Green
- Windage and Elevation Adjustment: 1/6 MOA
- Environmental Rating: Waterproof
- MIL-STD-810: Yes
- Dimensions: 11.50" x 3.75" x 3.60"
- Weight: 3.30 lbs
- Color: Black

Tube Specifications:

- High Quality 3P Gen Image Intensifier Tube
- Description: Pinnacle
- Generation: 3
- Photocathode Type: Thin-Filmed/Auto-Gated
- Resolution: 64 - 72 (lp/mm)
- Signal to Noise Ratio: 24 Typical
- Figure of Merit: 1800 Typical
- Photocathode Sensitivity: 2000-2800
